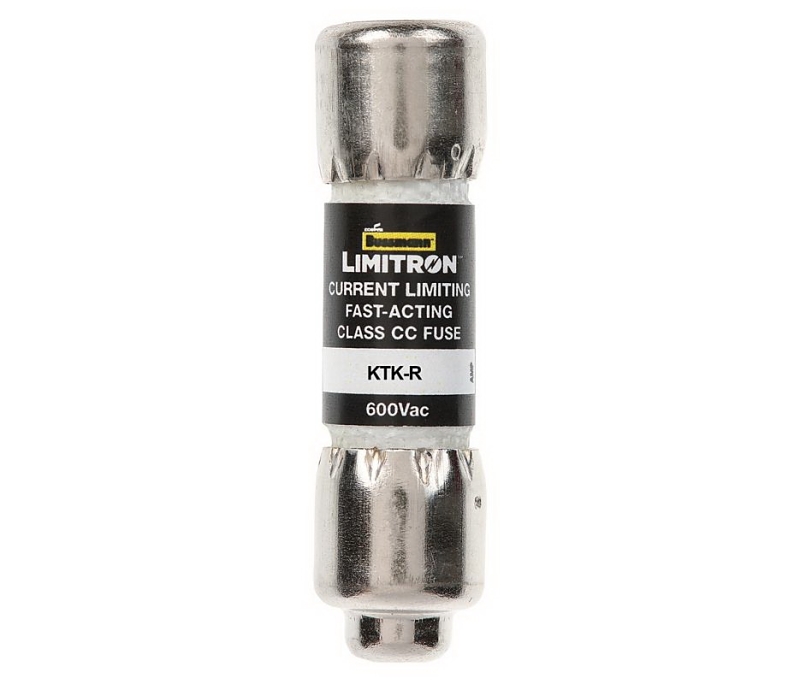

Midget fuses are 13/32 in x 1-1/2 in cartridge fuses in a wide variety of volt and amp ratings to provide supplemental protection to industrial, commercial, agricultural, heating, ventilating and air conditioning equipment. Small size midget fuses often protect control circuit wiring, motor control transformers or small motors. The National Electrical Code® (NEC® ) now requires more protection of these components creating an increased replacement demand for these fuses.
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- 200 kA interrupting rating complies with NEC Section 1109 for today's large-capacity systems
- Fast-acting fuse helps prevent equipment damage caused by short circuit events
- Rejection-type fuse fits both standard and rejection style holders
| Body Material | Melamine |
|---|
| Current Rating | 15 A |
|---|
| Diameter | 13/32 in |
|---|
| Element Type | Single |
|---|
| Indicator Type | Non-Indicating |
|---|
| Interrupt Rating | 200 kA |
|---|
| Length | 1-1/2 in |
|---|
| Rejection/Non-Rejection | Rejection |
|---|
| Terminal Type | Ferrule Holder |
|---|
| Type | Cartridge |
|---|
| Voltage Rating | 600 V |
|---|
MORE DETAILS:
- Application: For critical industrial or commercial applications that have specific current limitation requirements
